Coupè

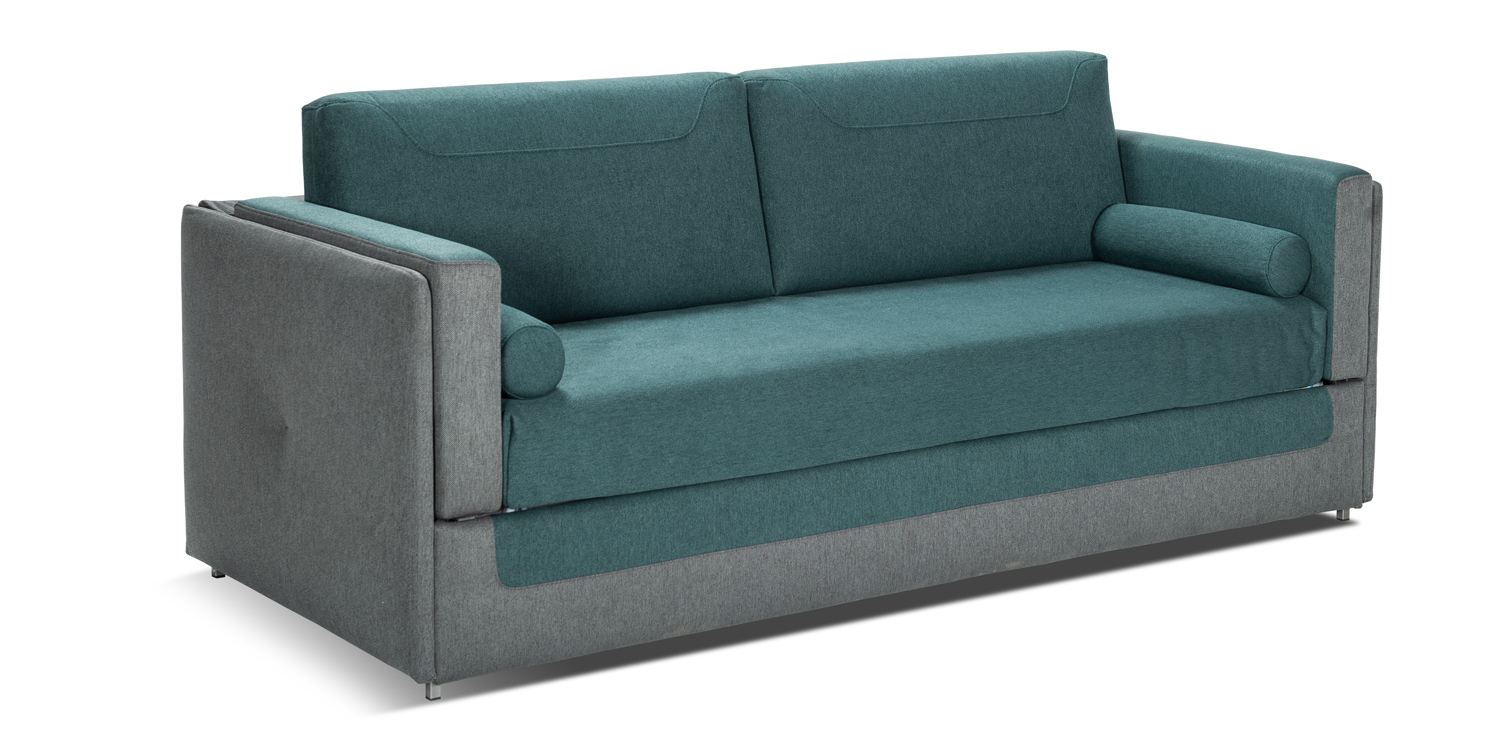

From sofa to double bed in just one movement.


TYPE
Mechanism for sofa convertible into two comfortable overlapping bed.
FEATURES

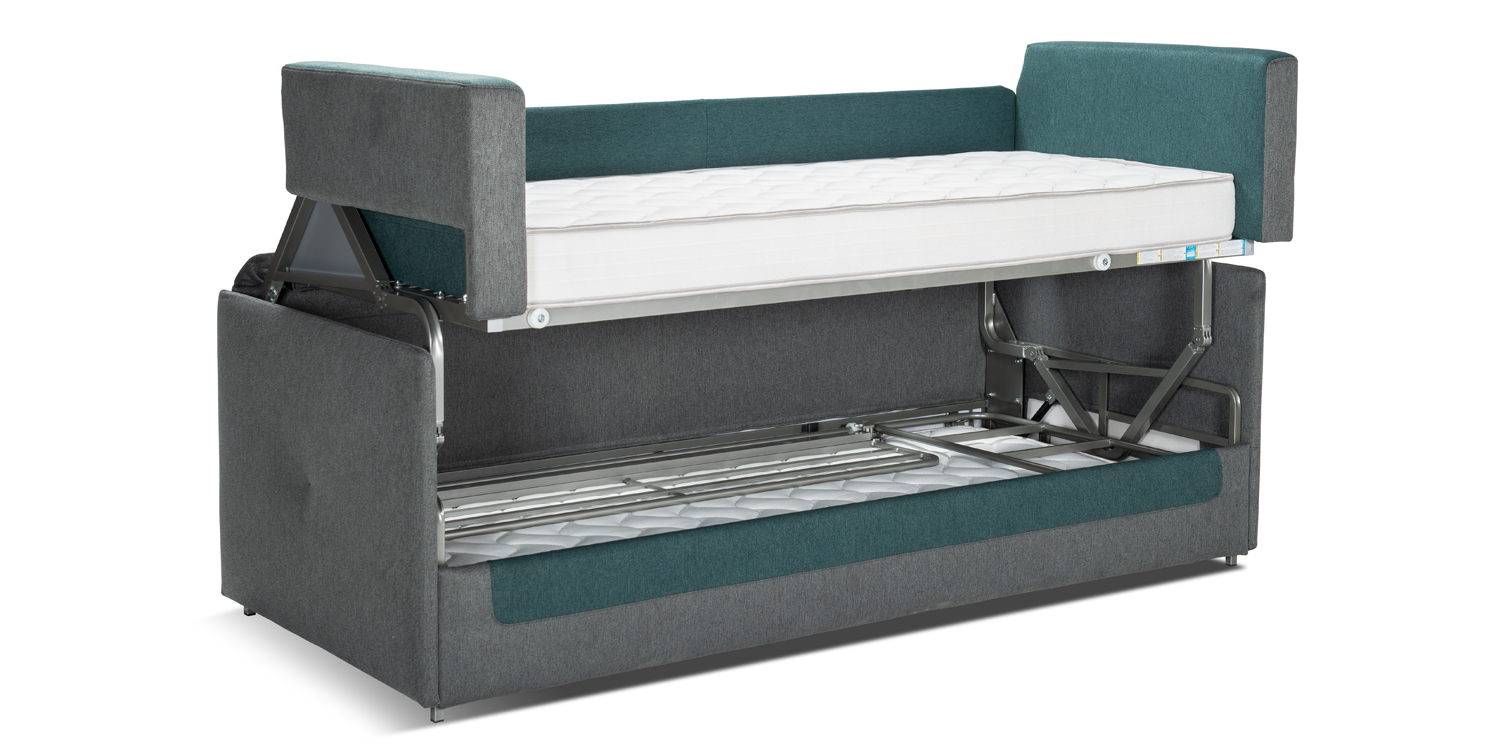

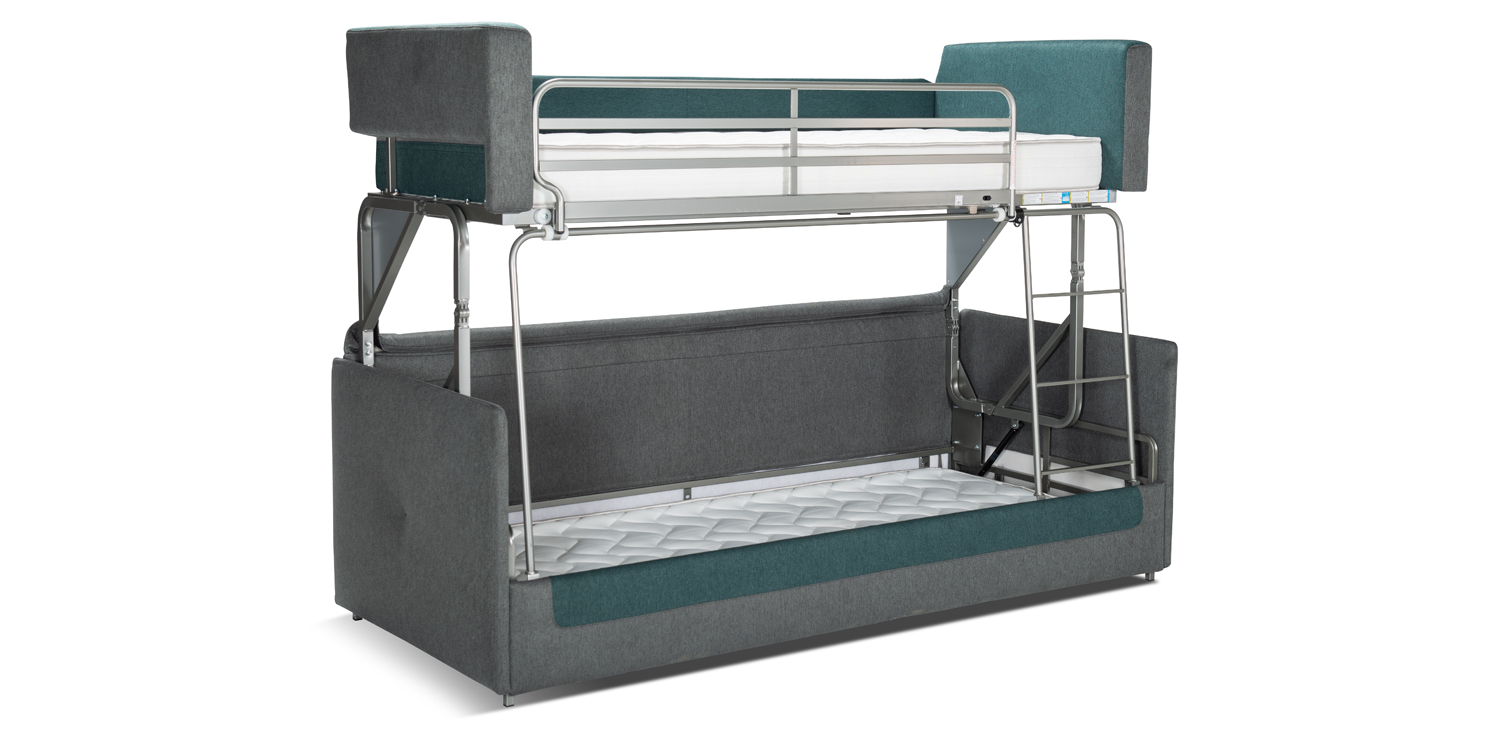

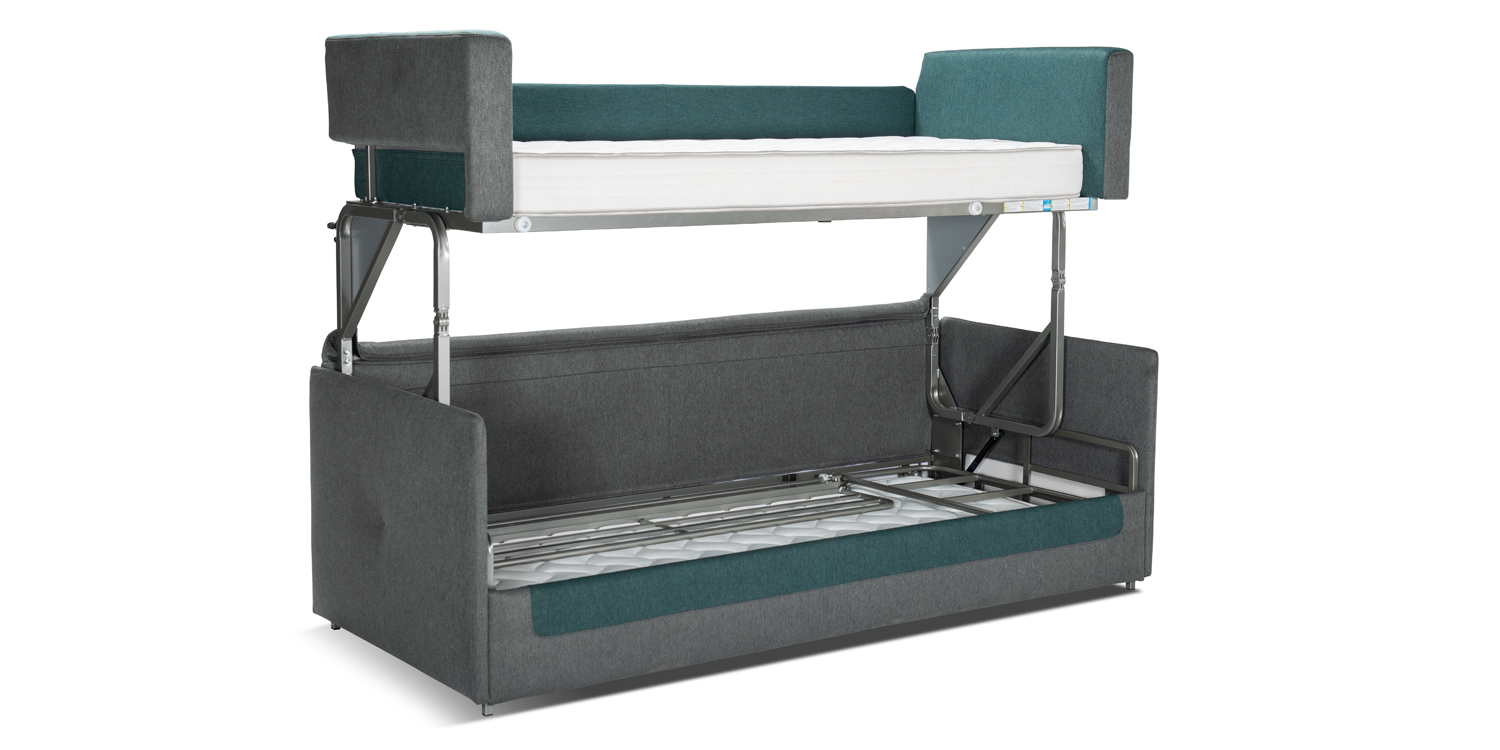

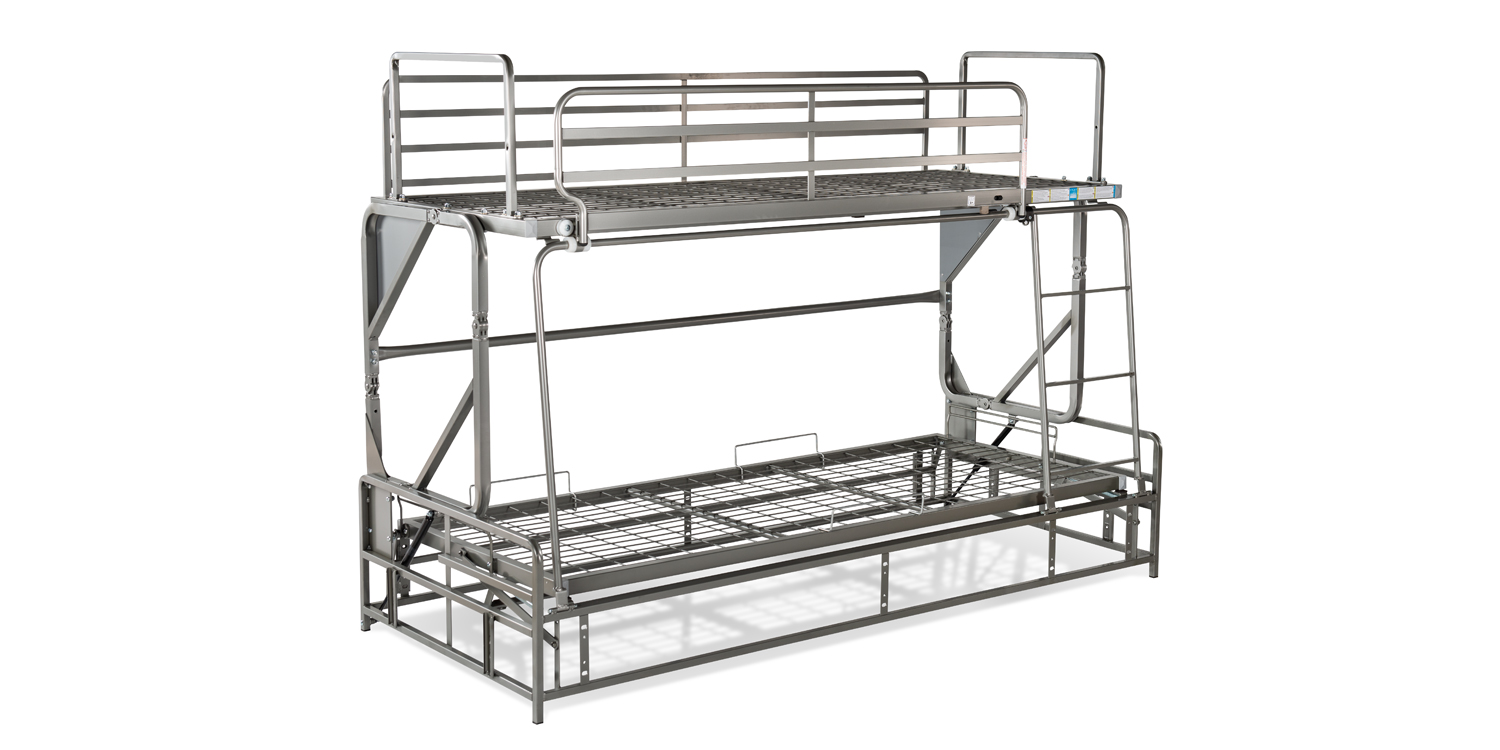

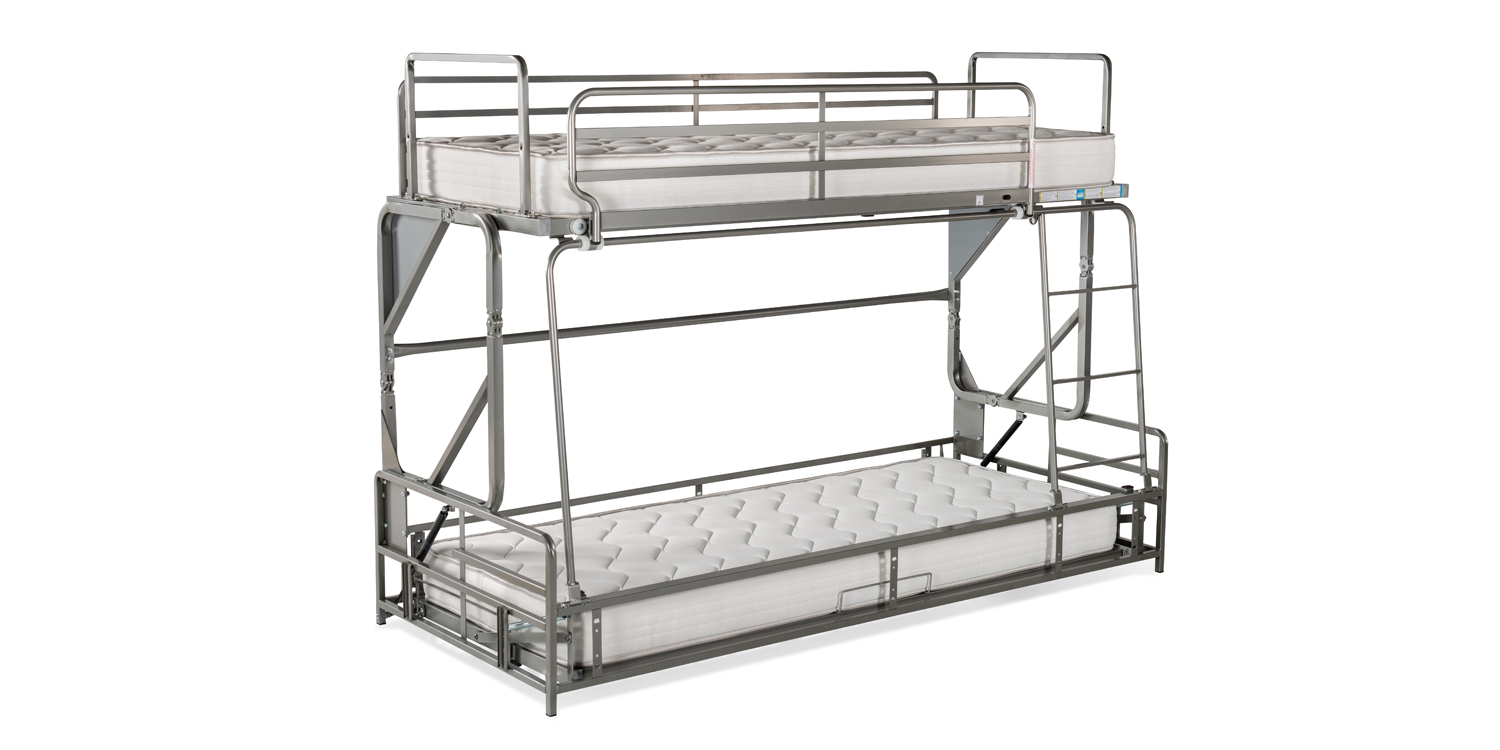

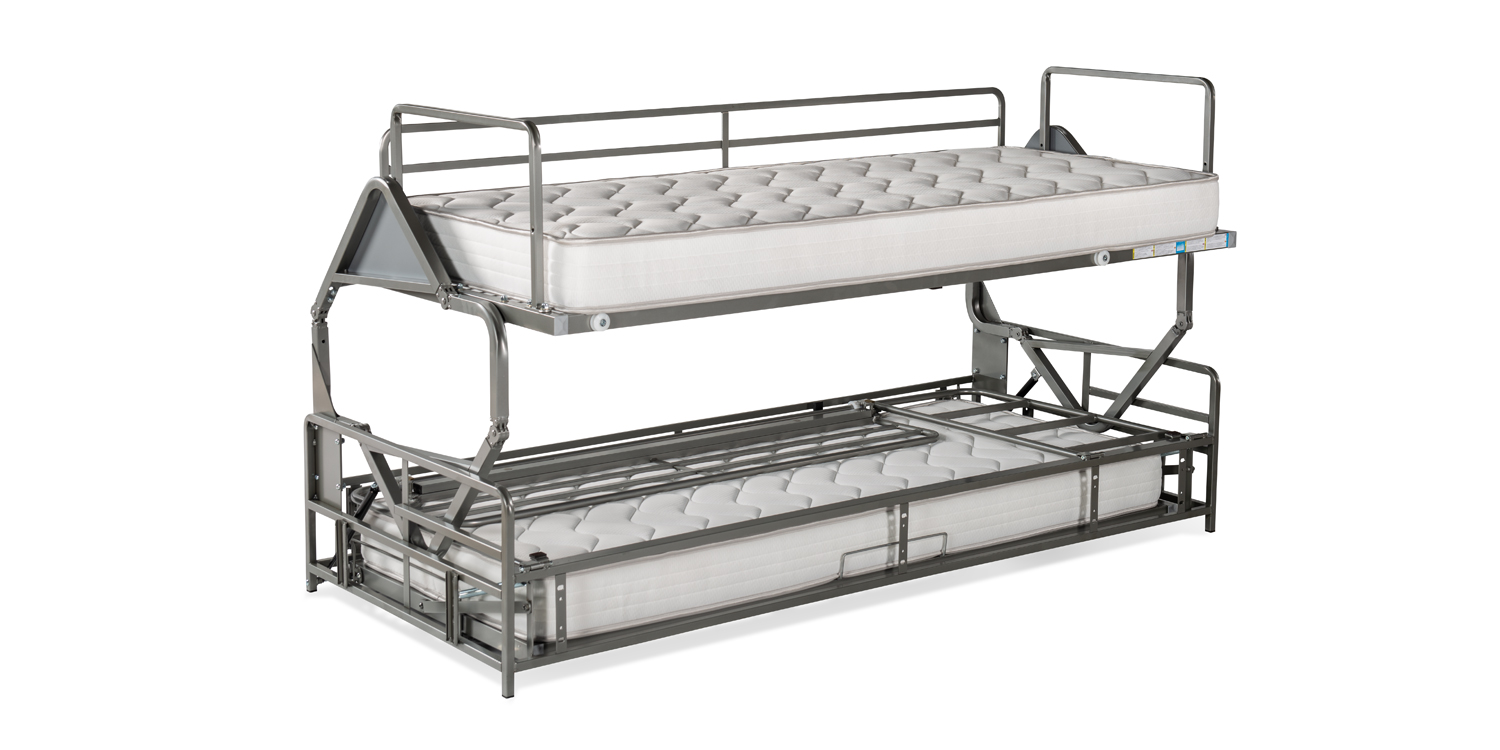

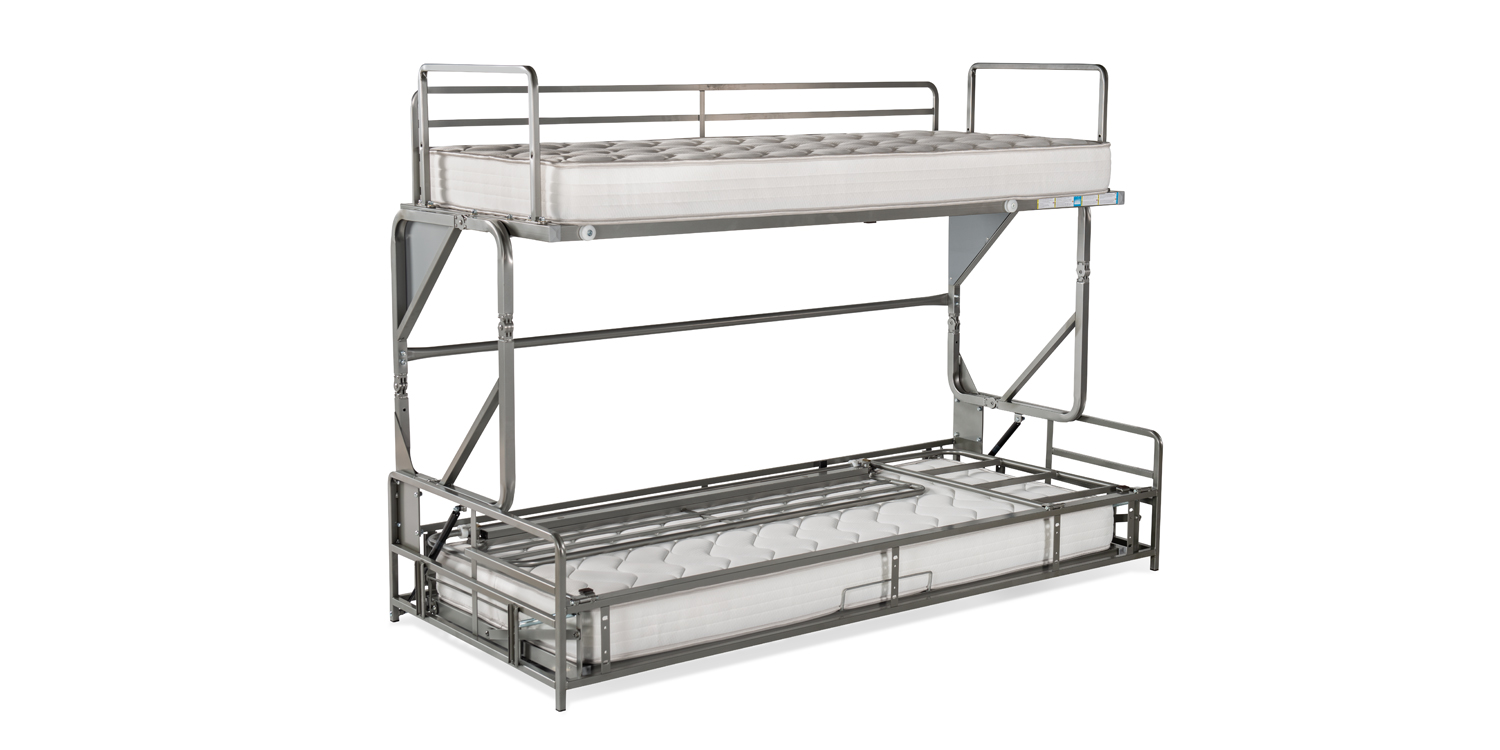

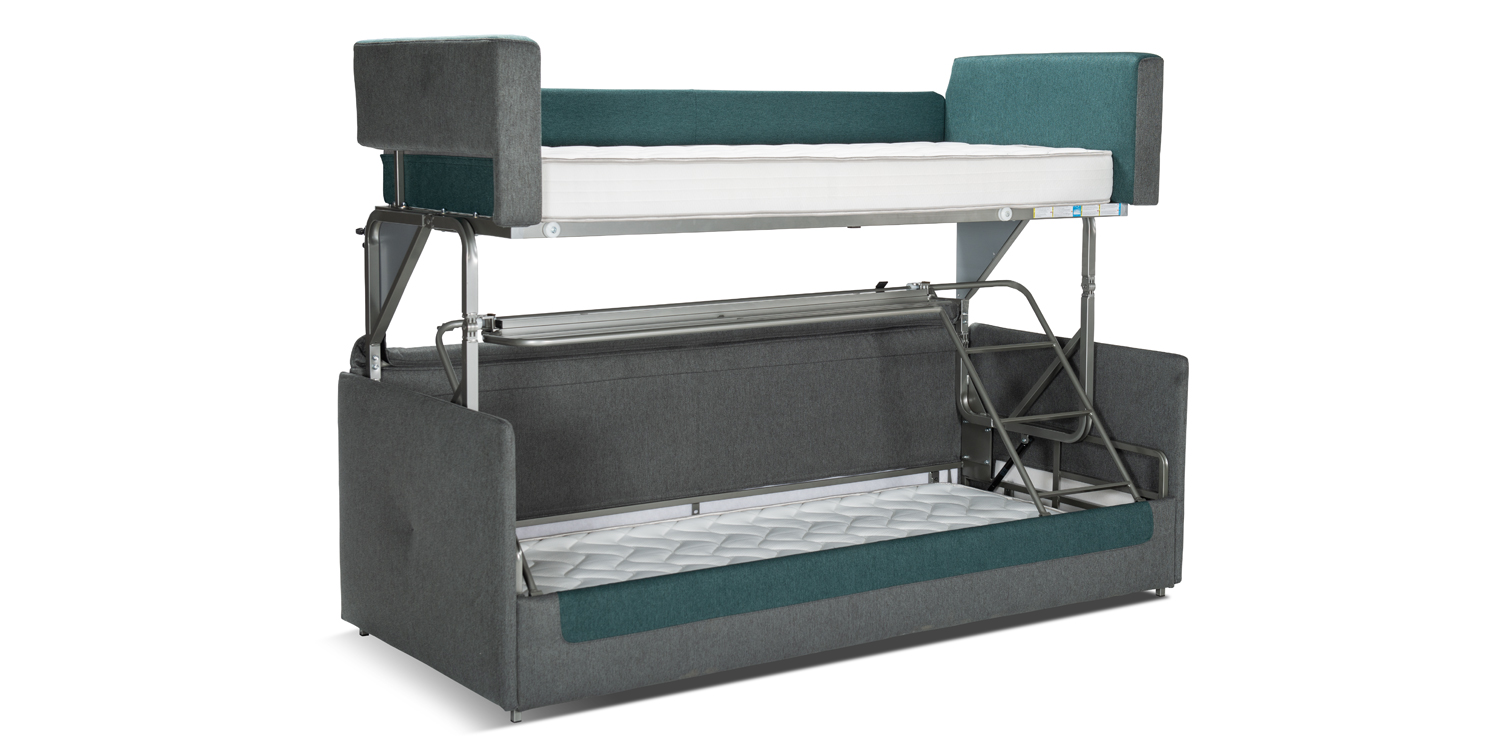

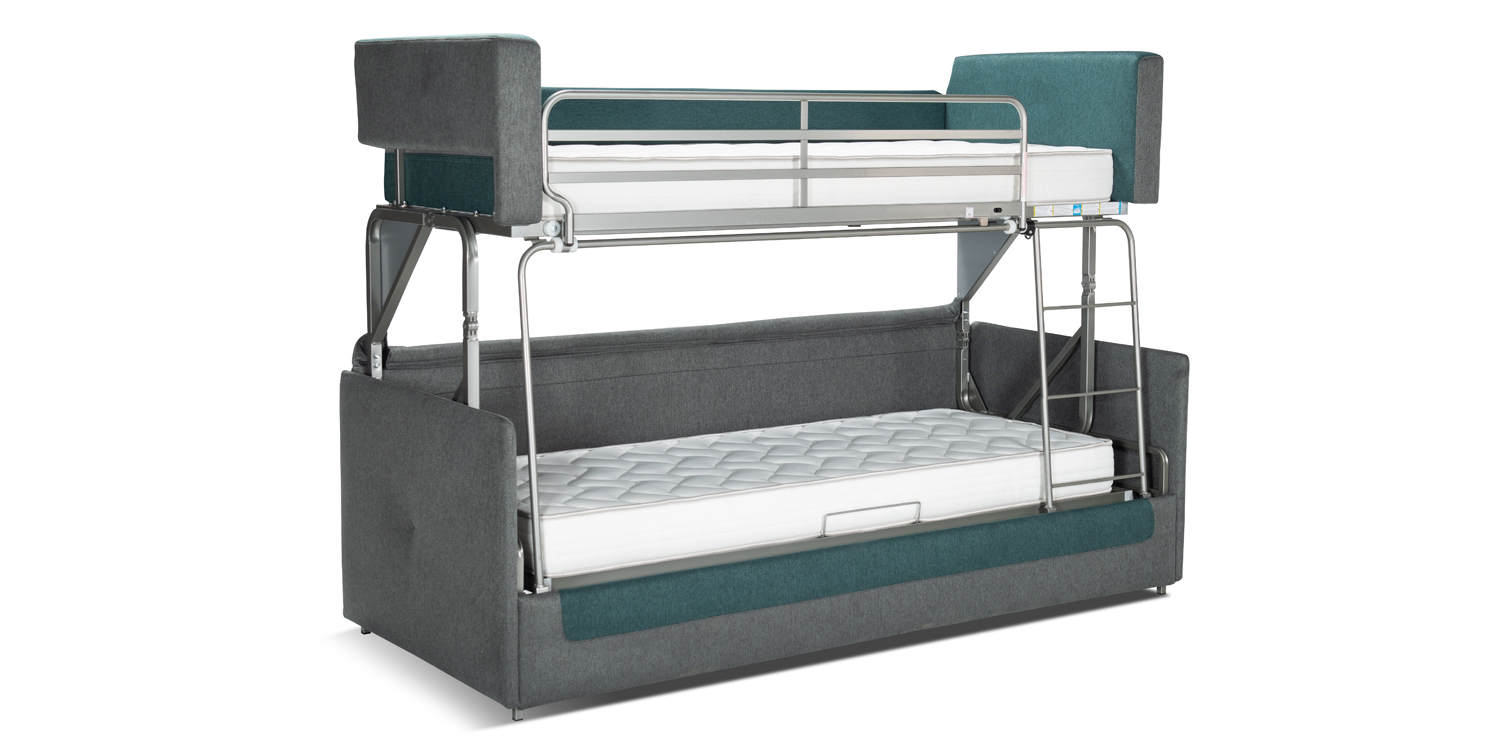

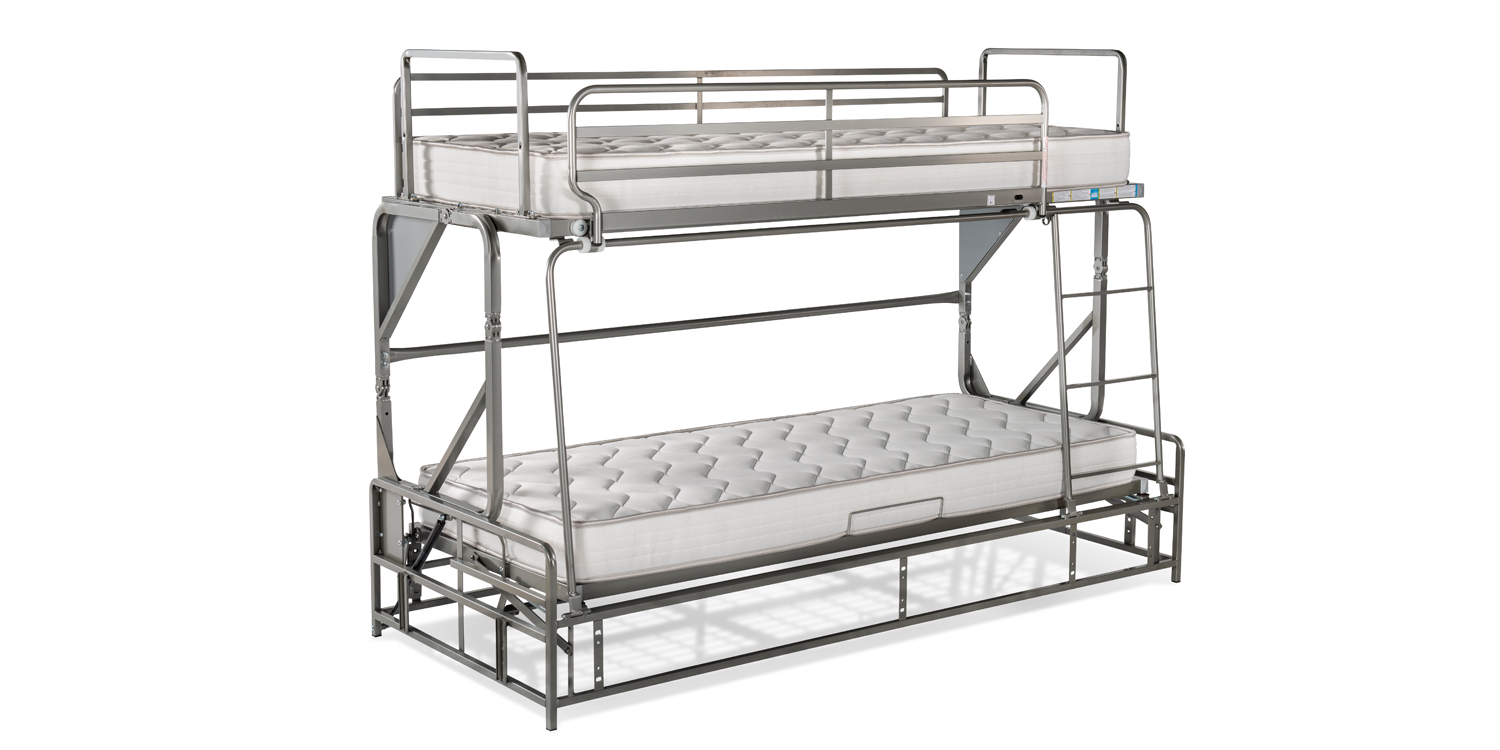

Characterized by a unique transformation system. The transformation takes place without any effort by lifting up the first bed (through the help of gas springs) and subsequently by pulling out the second lower bed. The ladder and security protection are built into a frame that folds up within the two beds. The mechanism is equipped with a safety lock with removable key when the bed is open. The structure is suitable for the realization of a wide modelling of sofas with modern design. Orthopedic bed base with electro welded mesh, high resistant steel structure painted with metallic grey colour epoxy powder. The mechanism complies with standards EN 747-1 & - 2 + A1:2015, that specify respectively: the requirements for safety, strength and durability of bunk beds and high beds for domestic and non-domestic use and related test methods.
MATERIALS
Made of steel and painted with metallic grey epoxy powders

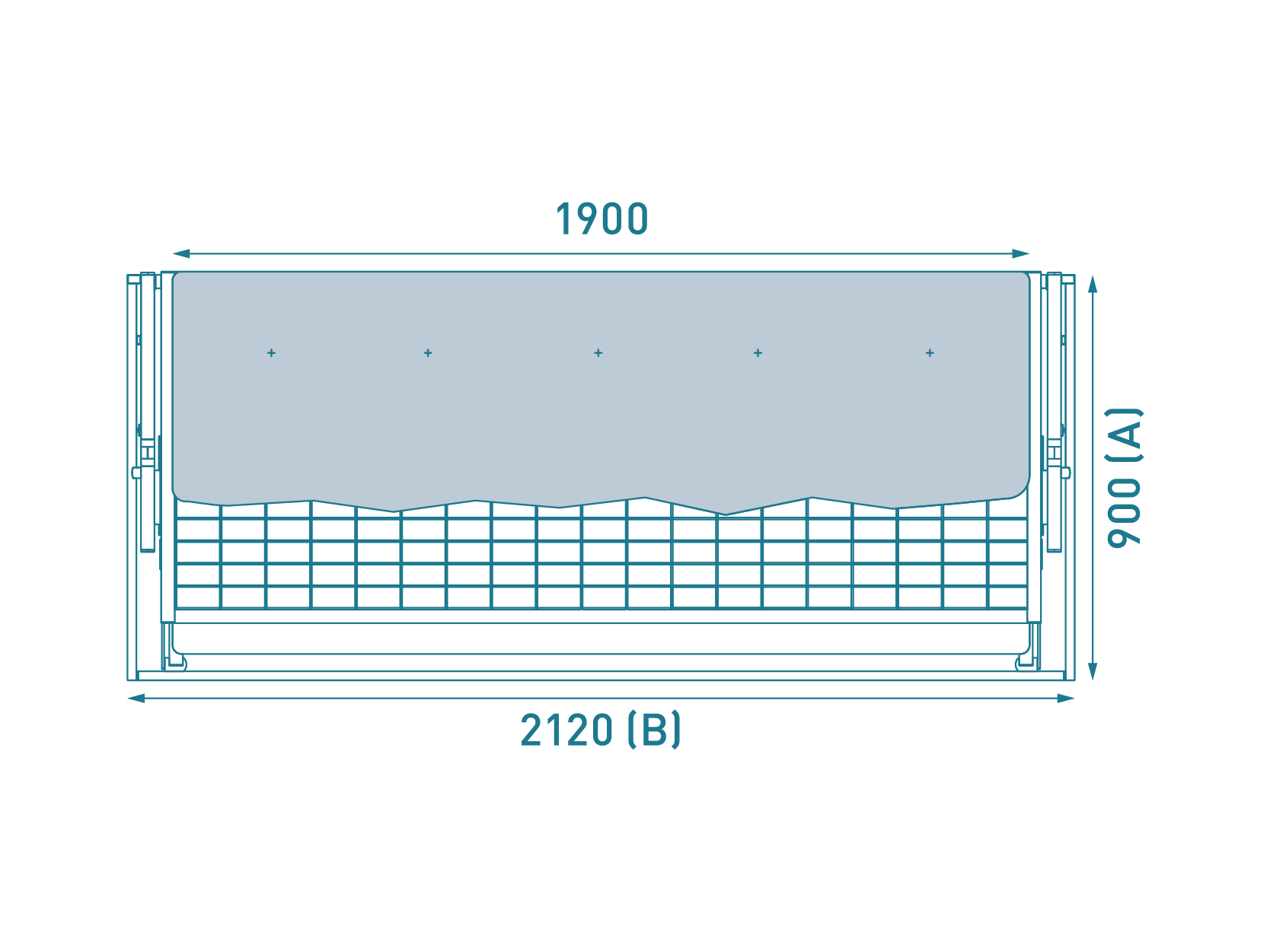

COUPè | SIZES
MOD A B MAT.ESPANSO/FOAM
Coupè 900 2120 1900 x 800 x 140

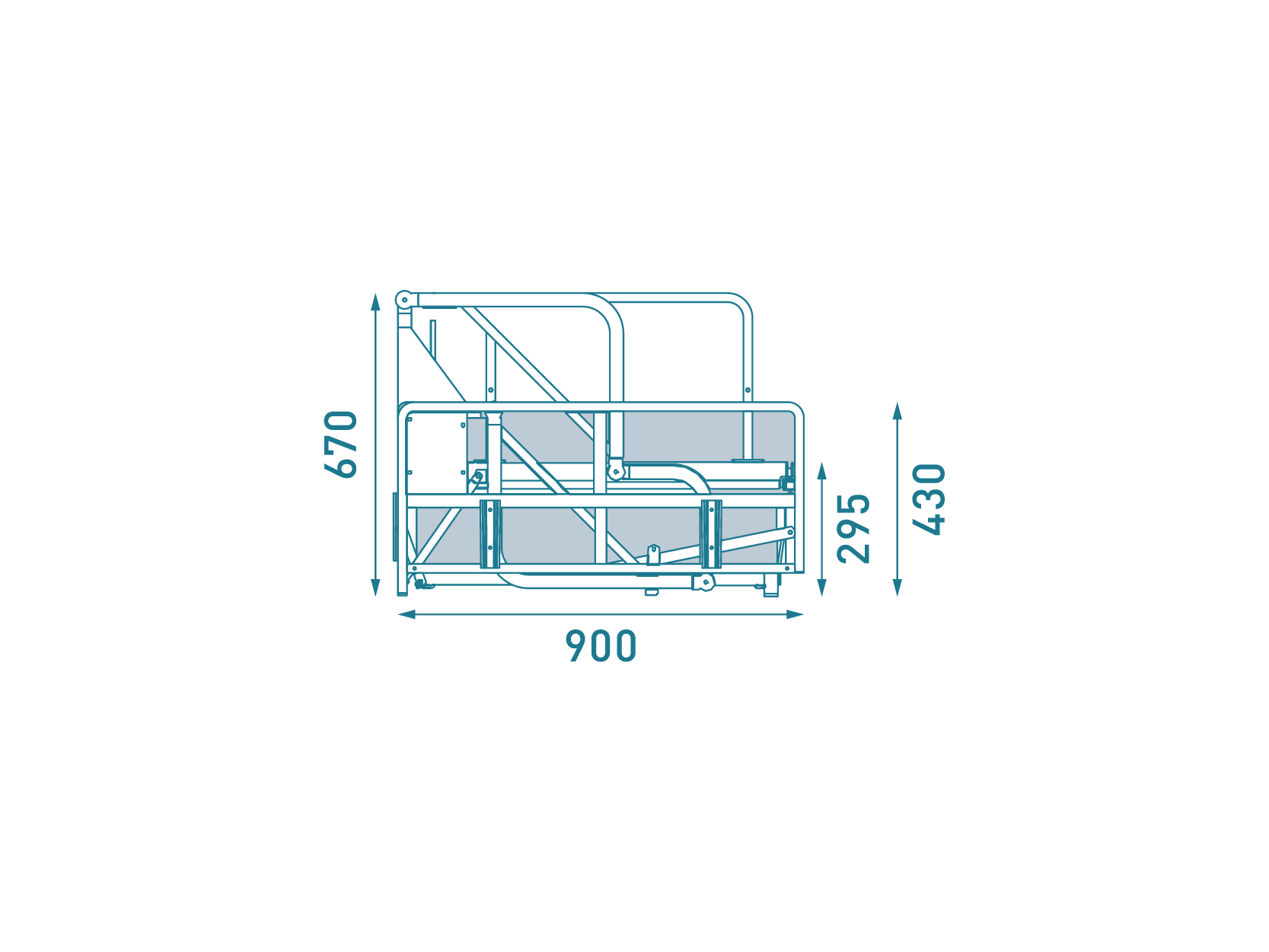

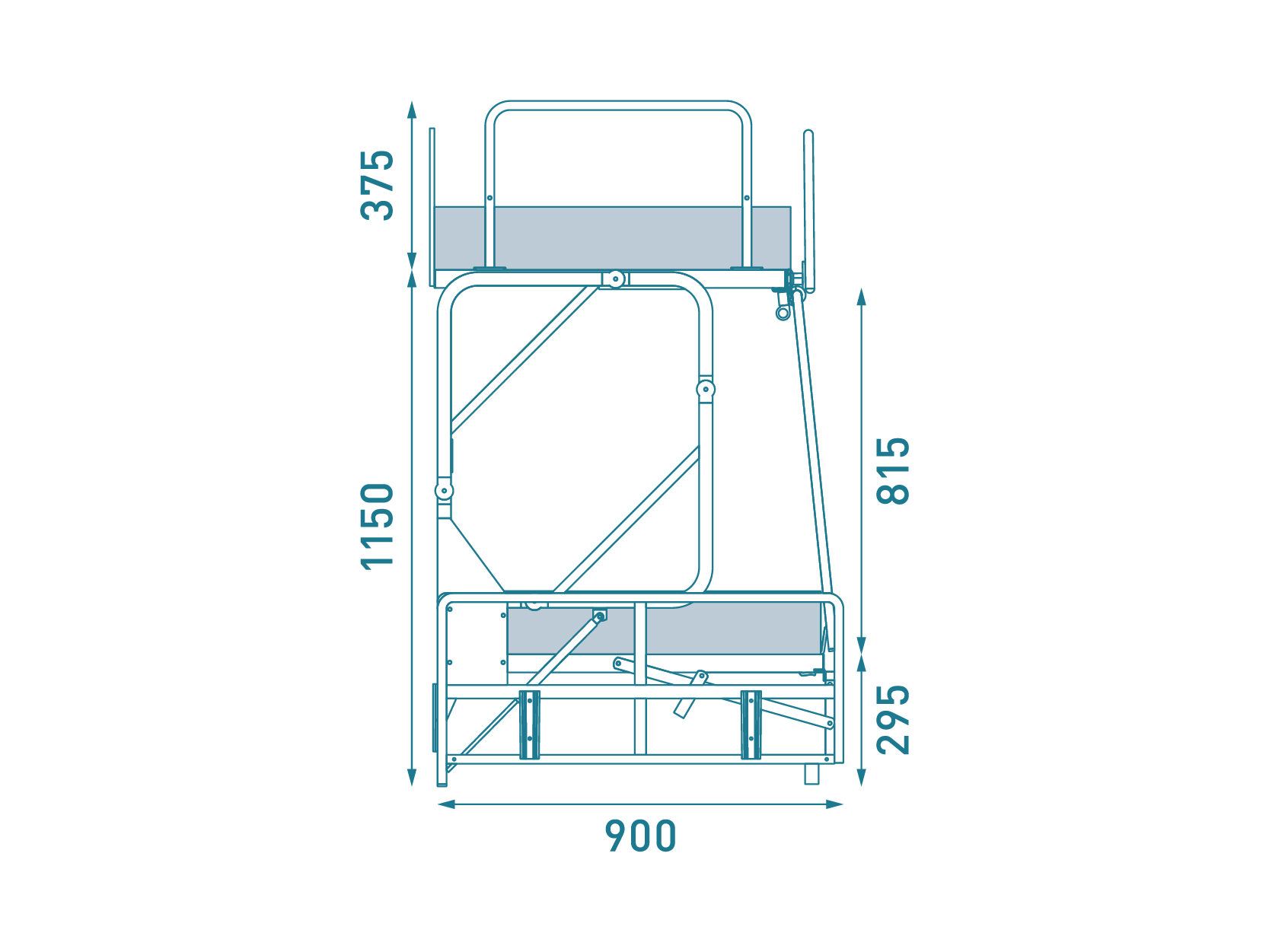

COUPè | DRAWINGS
