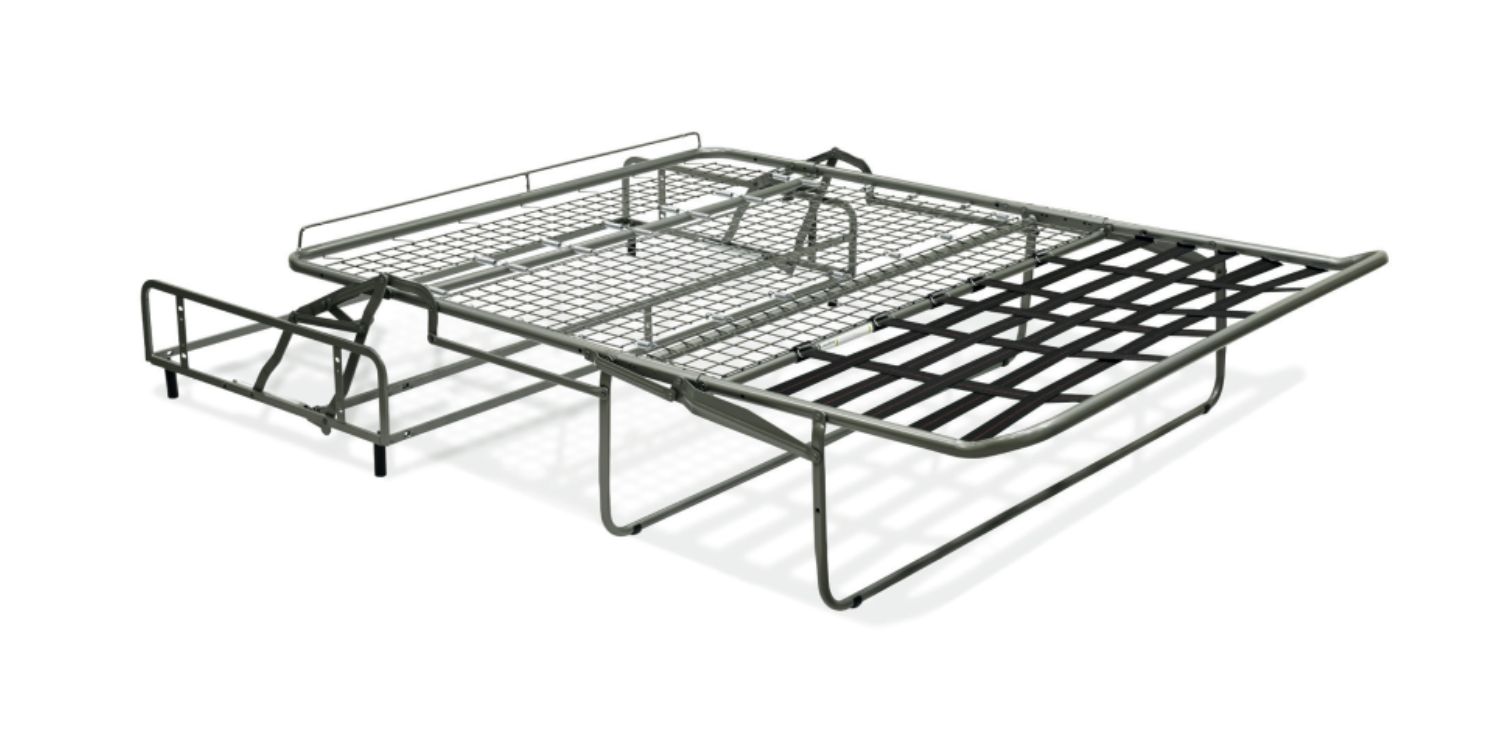

Daunia P33
Daunia P33
The two-folds par excellence.
TYPE
Two-fold type insertion mechanism, with front-lift opening system in two steps.
FEATURES
Orthopedic bed base with electro welded mesh and elastic belts on the seat
MATERIALS
Made of steel and painted with metallic grey epoxy powders
DAUNIA P33 | SIZES
| MOD | A | B | C | MAT.ESPANSO/FOAM |
| Daunia P33 - 180 | 1660 | 1945 | 1800 | 1880 x 1600 x 110 |
| Daunia P33 - 160 | 1460 | 1945 | 1600 | 1880 x 1400 x 110 |
| Daunia P33 - 140 | 1260 | 1945 | 1400 | 1880 x 1200 x 110 |
| Daunia P33 - 120 | 1060 | 1945 | 1200 | 1880 x 1000 x 110 |
| Daunia P33 - 90 | 760 | 1945 | 900 | 1880 x 700 x 110 |

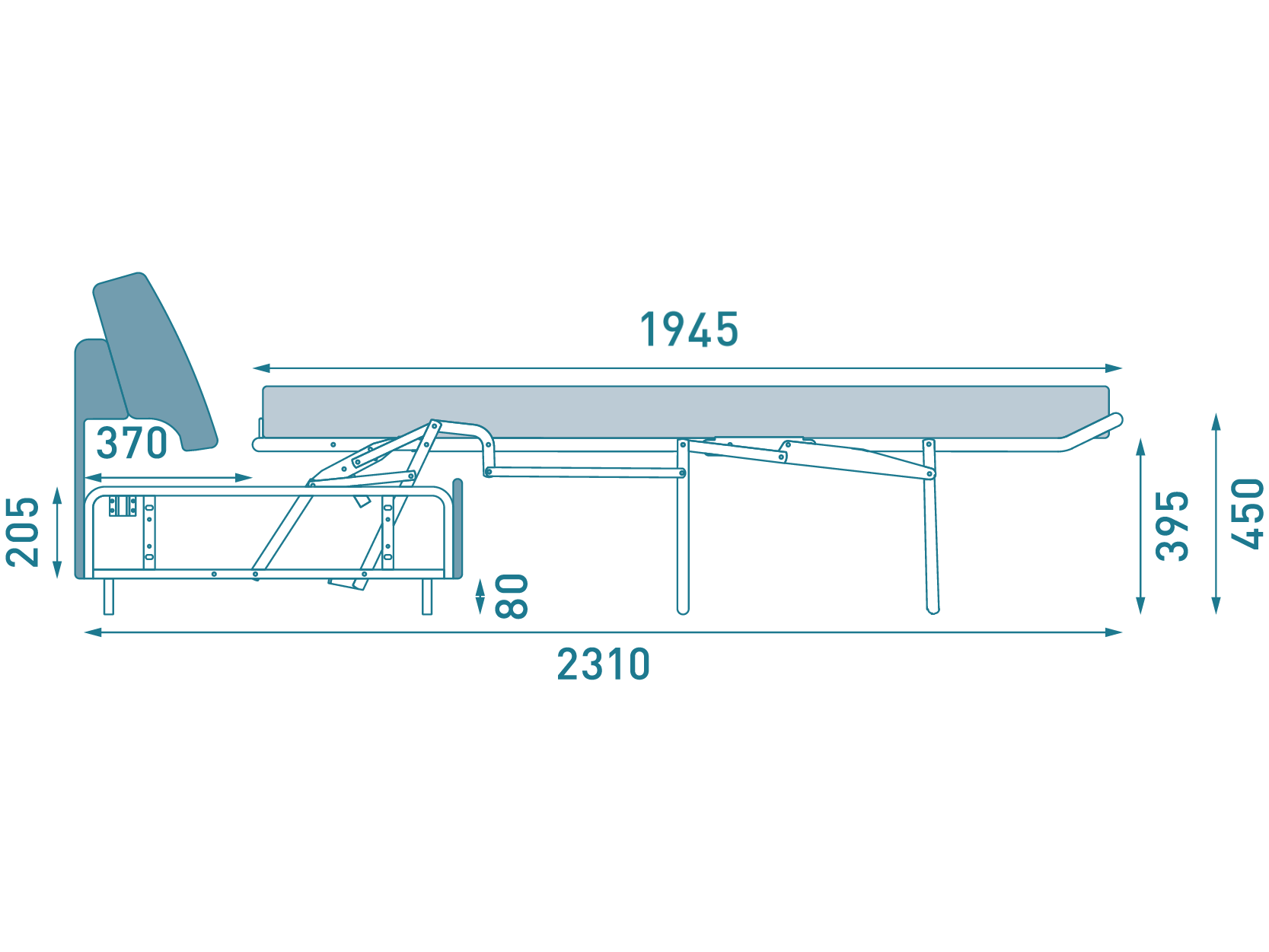

DAUNIA P33 | DRAWINGS
